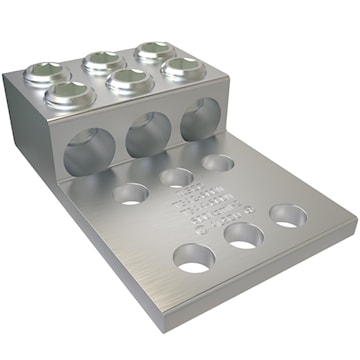

ILSCO T3A2-600N ClearChoice Mechanical Lug 600 kcmil - 2 AWG Aluminum
ilst3a2600n
ILSCO T3A2-600N ClearChoice Mechanical Lug 600 kcmil - 2 AWG Aluminum
Price
$492.90
/ EA
Inventory
Available for backorder
Manufacturer:ILSCO
Manufacturer #:T3A2-600N
Description
Dual rated aluminum three conductor connector manufactured from high strength 6061-T6 aluminum alloy. Chamfered wire entry. Provides low contact resistance, ease of installation. Suitable for use with either copper or aluminum conductors. Ensures reliability for copper or aluminum conductors.
Specifications
| Brand Name | Ilsco | Sub Brand | ClearChoice |
| Item Name | Mechanical Lug | Type | T3A |
| Conductor Type | Aluminum/Copper | Conductor Size | 600 kcmil - 2 AWG |
| Material | Aluminum | Number of Conductors | 3 |
| Voltage Rating | 2000 V | Mounting Hole Size | 1-3/4 in |
| Temperature Rating | 90 °C | Finish | Tin Plated |
| Color | Silver | Standards | CSA File No. LR-29601, UL 486A-B, UL E6207 |
| Application | Terminating Connector | UPC | 783669900576 |
Packages
| 1 - Unit |
