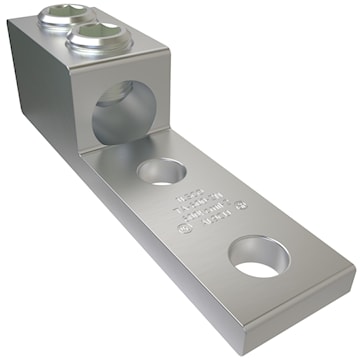

ILSCO TA-600-2N Lug mechanical aluminium 600kcmil-2AWG 1/2in

Name: ILSCO TA-600-2N Lug mechanical aluminium 600kcmil-2AWG 1/2in
Brand: ILSCO
SKU: ilsta6002n
Price: 117.19 CAD
Availability: OutOfStock

Price $117.19 / EA

Not Returnable

Inventory

Available for backorder

Manufacturer:ILSCO

Manufacturer #:TA-600-2N

Description

Dual rated aluminum mechanical Lug, one conductor, manufactured from high strength 6061-T6 aluminum alloy. Chamfered wire entry. Provides low contact resistance, ease of installation. Suitable for use with either copper or aluminum conductors. Ensures reliability for copper or aluminum conductors.

Specifications

Brand Name	ILSCO	Sub Brand	ILSCO
Type	TA:1 CONDUCTOR AL/CU	Conductor Type	Stranded
Material	Aluminum	Number of Conductors	1
Voltage Rating	35,000 V	Mounting Hole Size	0.562 in
Temperature Rating	90 degrees C	Finish	Tin Plated
Color	Silver	Standards	CSA File Number:LR-29601;UL Control Number:453G;UL File Number:E6207;UL / CULUS Specification:UL 486A/B Listed
Application	Mechanical Lug, One Conductor	UPC	783669892253
