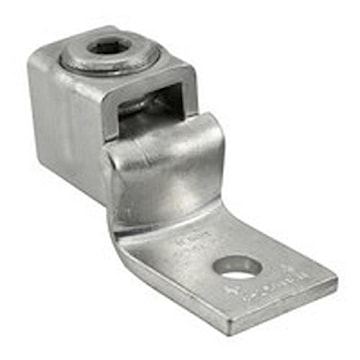

ILSCO CANADA NEWCO ULC SLUH-90 Lug mechanical copper 1C 2-14AWG 1/4in 1-hole
ilssluh90
ILSCO CANADA NEWCO ULC SLUH-90 Lug mechanical copper 1C 2-14AWG 1/4in 1-hole
Price
$22.19
/ EA
Inventory
Available for backorder
Manufacturer:ILSCO CANADA NEWCO ULC
Manufacturer #:SLUH-90
Description
Copper mechanical lug, heavy duty, one conductor, one hole. Manufactured from electrolytic copper tubing and strip stock. Compact design, re-usable, captive tang, V-bottom collar. Saves space and reduces installation time. Provides low contact resistance, maximum conductivity and strength. Ensures reliability for copper conductor.
Specifications
| Brand Name | Ilsco | Sub Brand | ClearChoice |
| Type | Heavy Duty | Conductor Type | Solid,Stranded |
| Material | Copper | Number of Conductors | 1 |
| Voltage Rating | 35000 V | Mounting Hole Size | 0.266 in |
| Temperature Rating | 90 °C | Finish | Tin Plated |
| Color | Copper | Standards | CSA File Number:LR-29601;UL Control Number:453G;UL File Number:E6207;UL / CULUS Specification:UL 486A/B Listed |
| Application | Mechanical Heavy Duty Lug, One Conductor | UPC | 783669840957 |
Packages
| 1 - Unit | 100 - Box |
