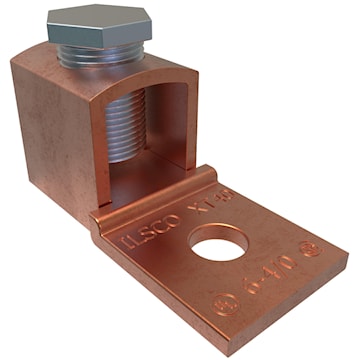

ILSCO XT-40 ClearChoice Mechanical Lug Straight Tongue
ilsxt40
ILSCO XT-40 ClearChoice Mechanical Lug Straight Tongue
Price
$54.59
/ EA
Inventory
Available for backorder
Manufacturer:ILSCO
Manufacturer #:XT-40
Description
Copper mechanical lug, one conductor, one hole. Manufactured from electrolytic copper tubing and strip stock. Provides maximum conductivity and strength. Saves space and reduces installation time. Saves space and reduces installation time. Permits inventories to be kept to a minimum. Provides efficient use and flexibility in the field. Ensures reliability for copper conductor.
Specifications
| Brand Name | Ilsco | Sub Brand | ClearChoice |
| Item Name | Mechanical Lug | Type | Straight Tongue |
| Conductor Type | Copper | Conductor Size | 4/0-6 AWG |
| Number of Bolt Holes | 1 | Material | Copper |
| Series | XT | Number of Conductors | 1 |
| Bolt Size | 5/16 in | Tongue Type | Straight |
| Voltage Rating | 2000 V | Specifications | 5/8 in External Hex |
| Mounting Hole Size | 0.344 in | Temperature Rating | 90 °C |
| Finish | Electrolytic | Color | Copper |
| Dimensions | 2-3/16 in L x 1-5/8 in T | Standards | UL 453G, CSA LR-29601, RoHS Compliant |
| Application | For use in Circuits Rated 35 kV or Less, Proper High Voltage Spacing and Insulation Techniques must be used for Copper Conductor Only | UPC | 783669959239 |
Packages
| 1 - Unit | 25 - Box |
