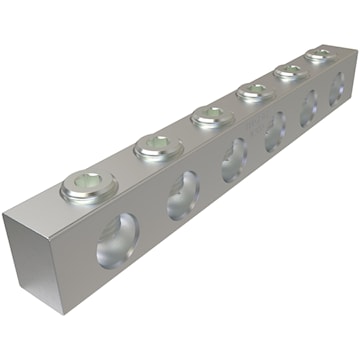

ILSCO PED-6-2/0-Z ClearChoice Multi-Tap Connector 6061-T6 Aluminum Alloy
ilsped620z
ILSCO PED-6-2/0-Z ClearChoice Multi-Tap Connector 6061-T6 Aluminum Alloy
Price
$79.23
/ EA
Inventory
Available for backorder
Manufacturer:ILSCO
Manufacturer #:PED-6-2/0-Z
Description
aluminium multi-tap connector. Dual rated. 6-port. 2/0-14 wire. 3/16 inch hexagonal size. Manufactured from high strength 6061-T6 aluminium alloy. Compact size. Rated for 600 V, 90°C. Provides multiple conductor installation for a wide range of conductors. Suitable for use with either copper or aluminium conductors. Suitable for pedestal applications. Available in a wide variety of configurations. Range-taking for reduced inventories and flexibility.
Specifications
| Brand Name | Ilsco | Sub Brand | ClearChoice |
| Item Name | Multi-Tap Connector | Type | Dual-Rated |
| Voltage Rating | 600 V | Number of Ports | 6 |
| Number of Conductors | 6 | Conductor Size | 14-2/0 AWG |
| Material | 6061-T6 Aluminum Alloy | Dimensions | 5.46 in L x 0.56 in W x 0.73 in H |
| Temperature Rating | 90 °C | Standards | UL 453G Listed, RoHS Compliant |
| Application | For Pedestal Applications and Copper or Aluminum Conductors | UPC | 783669700046 |
Packages
| 1 - Unit | 6 - Box |
