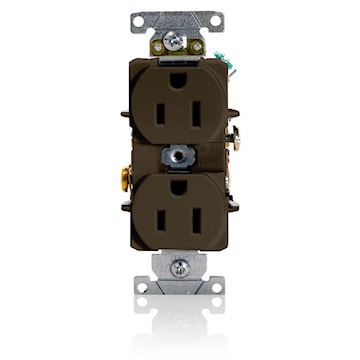

LEVITON 5252 2-Outlet, 1-Unit Straight Blade Duplex Receptacle 15 A, 5-15R Brown
lev5252
LEVITON 5252 2-Outlet, 1-Unit Straight Blade Duplex Receptacle 15 A, 5-15R Brown
Price
$21.89
/ EA
Inventory
In Stock
Manufacturer:LEVITON
Manufacturer #:5252
Description
15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Industrial Series Heavy Duty Specification Grade, Duplex Receptacle, Straight Blade, Self Grounding, Back & Side 8 Hole Feed-Thru Wired, Steel Strap, - BROWN
Specifications
| Brand Name | Leviton | Sub Brand | Industrial Receptacles |
| Item Name | Straight Blade Duplex Receptacle | Type | 2-Outlet, 1-Unit |
| Grade | Commercial | Size | 46 H x 1.55 W x 1.12 D IN |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Number of Poles | 2 | Number of Wires | 3 |
| NEMA Configuration | 5-15R | Connection Type | Back and Side Wire |
| NEMA Rating | 5-15R | Conductor Size | 14-10 AWG |
| Material | Thermoplastic | Color | Brown |
| Finish | Smooth | Frequency Rating | 50/60 Hz |
| Phase | 1 | Dielectric Strength | 2000 V |
| Grounding | Self-Grounding | Dimensions | 39.5 mm W x 28.4 mm D x 103.2 mm H |
| Mounting Type | Screw, Wall Box, Flush | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | UL 94 Requirements, V2 Rated Flammability | Standards | NEMA WD-1, WD-6, ANSI C-73, NOM 057 Certified, CSA C22.2 No. 42 (File 152105),UL Fed Spec WC-596 (File E13399),UL Listed 498 (File E13399) |
| Application | For Heavy Duty (in Accordance with VDE) | UPC | 078477819548 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 6400 - Pallet |
