lev5015

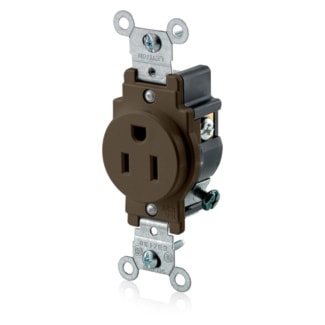

LEVITON 5015 Outlet Straight Blade Single Receptacle 15 A, 5-15R Brown
lev5015
LEVITON 5015 Outlet Straight Blade Single Receptacle 15 A, 5-15R Brown
Price
$19.43
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:5015
Description
15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Narrow Body Single Receptacle, Straight Blade, Commercial Grade, Grounding, , , Side Wired, Steel Strap, - Brown
Specifications
| Brand Name | Leviton | Sub Brand | Commercial Receptacles |
| Item Name | Straight Blade Single Receptacle | Type | Outlet |
| Grade | Commercial | Size | 46 H x 1.38 W x 16 D IN |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Number of Poles | 2 | Number of Wires | 3 |
| Connection Type | Side Wire | NEMA Rating | 5-15R |
| Conductor Size | 14-10 AWG | Material | Nylon |
| Color | Brown | Frequency Rating | 50/60 Hz |
| Phase | 1 | Dielectric Strength | 2000 V |
| Grounding | Grounding | Dimensions | 35 mm W x 26.9 mm D x 103.2 mm H |
| Mounting Type | Wallbox, Flush | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | UL 94 Requirements, V2 Rated Flammability | Standards | ANSI C73, UL 498, UL File Number E13399, CSA File Number 152105, CSA C22.2 No. 42, Federal Specification WC-596, NOM 057 Certified, NEMA WD-2, WD-6 |
| Application | Commercial | UPC | 078477205808 |
Packages
| 1 - Unit | 10 - Box | 100 - Crate | 6400 - Pallet |
